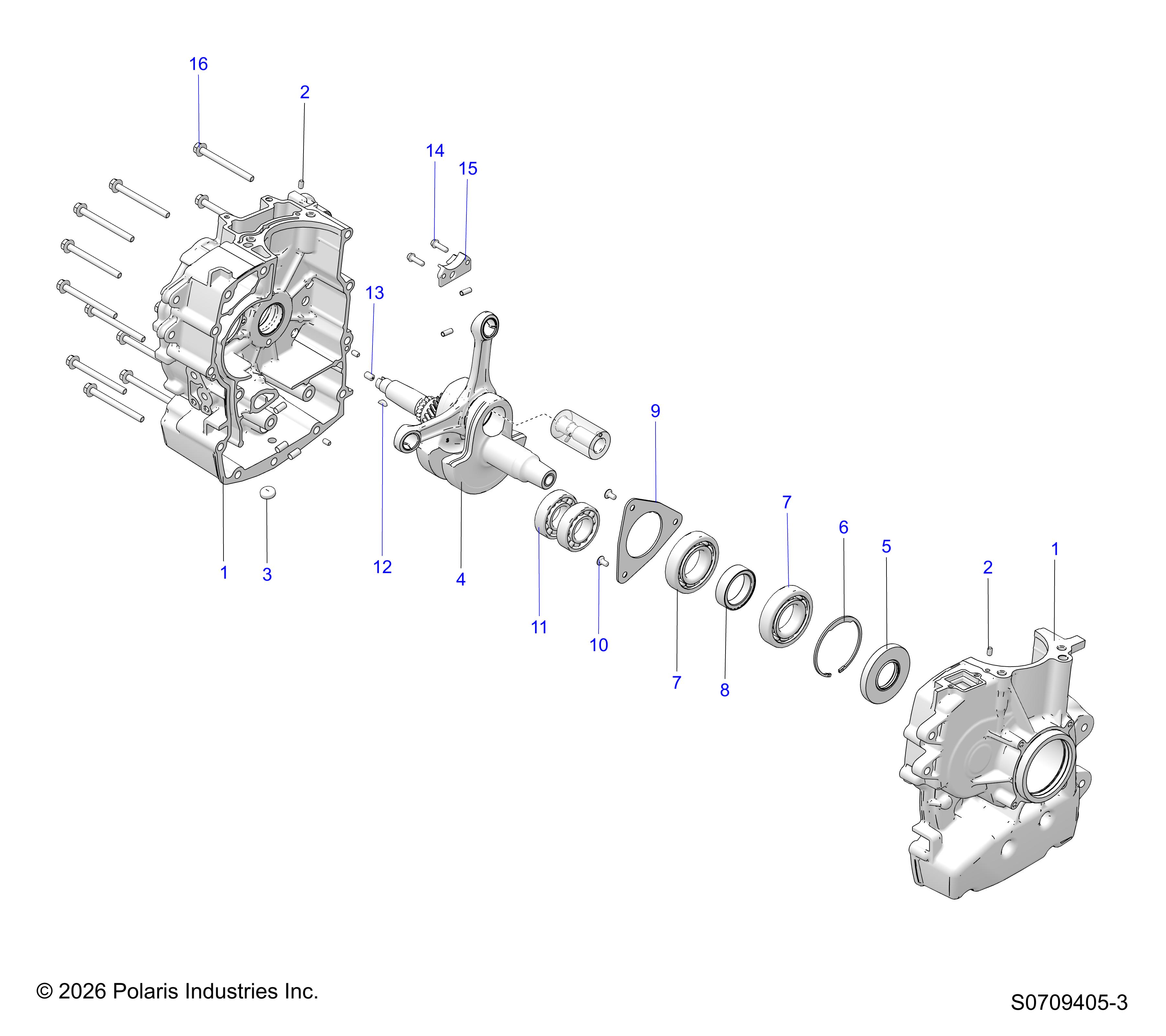

ENGINE, CRANKCASE & CRANKSHAFT
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 2205248 | KIT, CRANKCASE [INCLUDES 6-11,14 & 15] | 1 | 1615.86+iva |  |
| 1 | 2205248 | KIT, CRANKCASE [INCLUDES 6-11,14 & 15] | 1 | 1615.86+iva | |
| 2 | 5143560 | PIN-DOWEL,M6X10 | 7 | 12.92+iva | |
| 2 | 5143560 | PIN-DOWEL,M6X10 | 7 | 12.92+iva | |
| 3 | 7055701 | PLUG-EXPANSION 19MM | 1 | +iva | |
| 4 | 2206356 | K-CRANKSHAFT 570 [INCLUDES 4 & 13] | 1 | 1307.14+iva | |
| 4 | 3024223 | ASM-CRANKSHAFT,MACH,73.6MM | 1 | 1259.93+iva | |
| 5 | 3610171 | SEAL-CRANKSHAFT | 1 | 59.05+iva | |
| 6 | 7710660 | RING-SNAP,80X2.5 | 1 | 7.20+iva | |
| 7 | 3515831 | BEARING-BALL 40X80X18 DG NCAGE | 2 | 44.15+iva | |
| 7 | 3515831 | BEARING-BALL 40X80X18 DG NCAGE | 2 | 44.15+iva | |
| 8 | 5144728 | SPACER-BRG,MACH | 1 | 32.30+iva | |
| 9 | 5256915 | PLATE-BEARING RETAINER | 1 | 31.58+iva | |
| 10 | 7517598 | SCREW-M6X12 TORX DR FH | 3 | 14.00+iva | |
| 11 | 3515827 | BEARING-BALL,30X62X16 | 2 | 22.62+iva | |
| 12 | 7721122 | KEY-WOODRUFF,4X5 | 1 | 11.17+iva | |
| 13 | 2540080 | JET-OIL,OIL PUMP | 1 | 18.95+iva | |
| 14 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 1 | 5.77+iva | |
| 15 | 3022711 | GUIDE-CAM DRIVE,LOWER | 1 | 17.37+iva | |
| 16 | 7520104 | SCREW-M8X1.25X90 | 15 | 8.68+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
